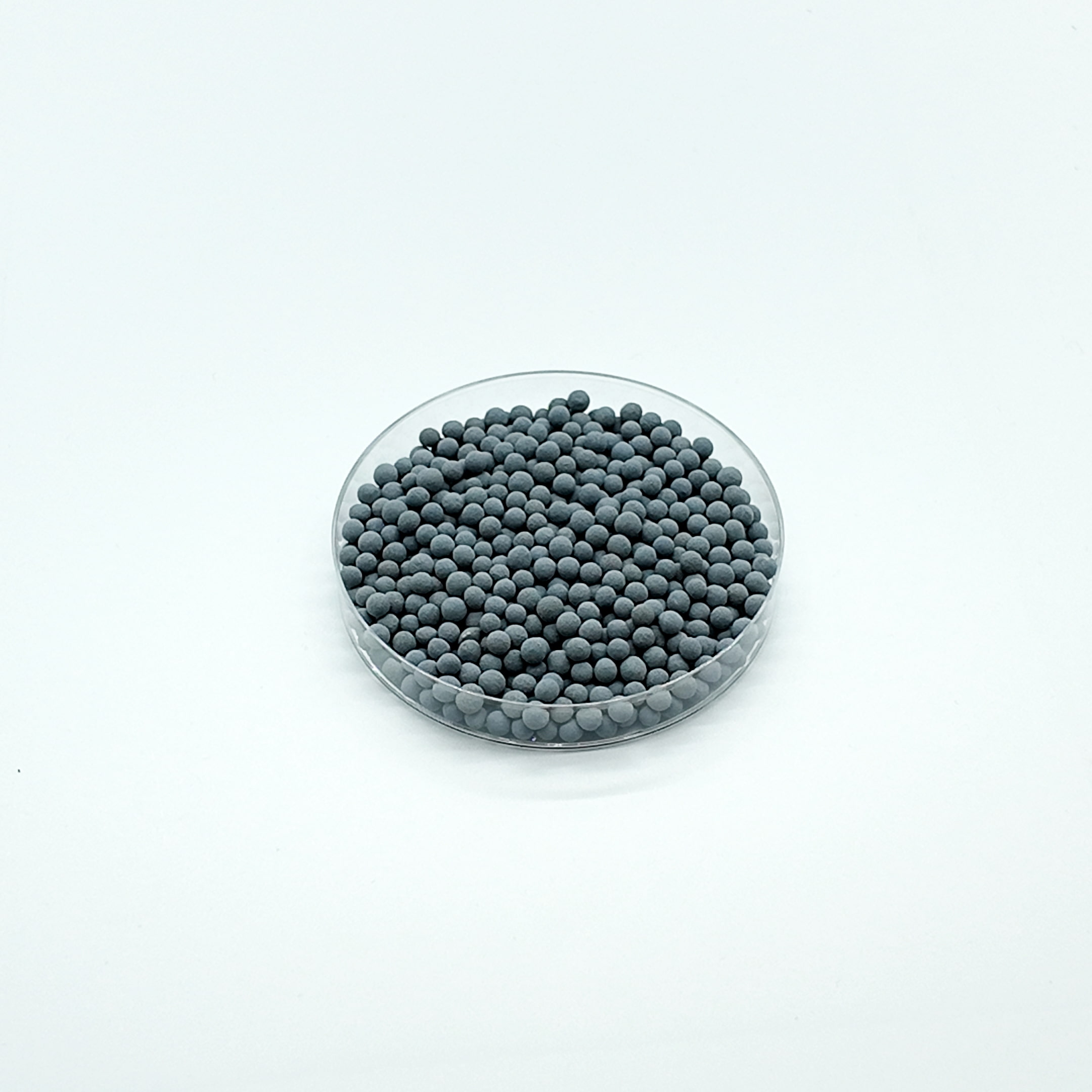

Hydrogen Series Products Disc and Ceramic Ball for Water Purify
Functions
Efficient hydrogen generation in water
Adjusts water to weakly alkaline condition
Reduces oxidation-reduction potential (ORP)
Improves water taste and quality
Supports multi-stage water purification systems
Advantages
Stable and continuous hydrogen release
Safe and durable ceramic structure
Compatible with multiple applications and systems
Long service life with low maintenance
Environmentally friendly and reusable
Product Description

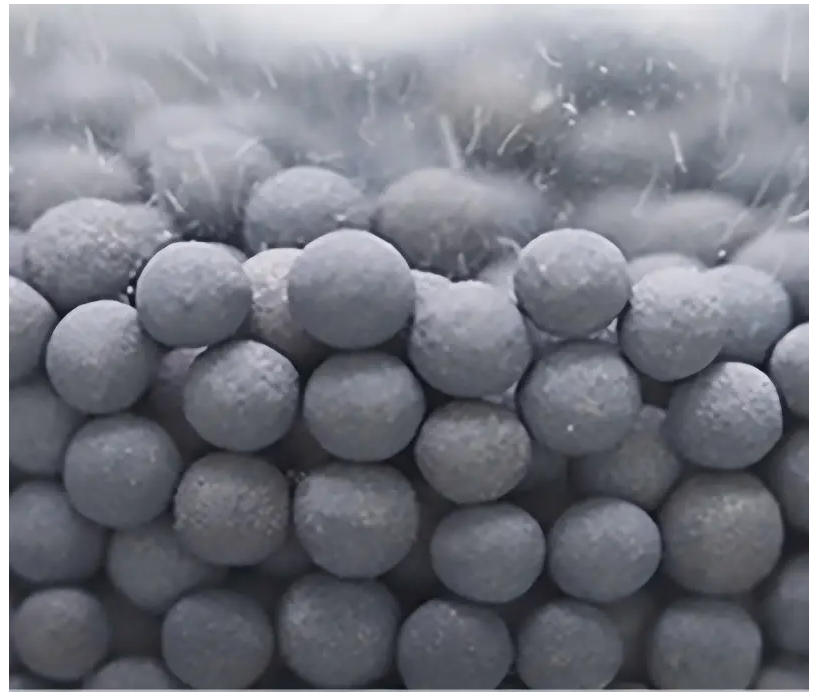

Hydrogen ceramic balls and discs are advanced functional filtration media designed to produce hydrogen-rich water through non-electrolytic reactions.
Manufactured using porous ceramic structures combined with hydrogen-generating materials such as magnesium-based compounds, the product enables controlled hydrogen release when in contact with water. The ceramic matrix ensures stability, durability, and safe performance across different water conditions.
These products are widely used in drinking water systems, health-related applications, and industrial water treatment, offering both functional and structural advantages over traditional filtration media.
Technical Parameters
Parameter Specification
Product Name Hydrogen Ceramic Ball / Disc
Shape Spherical / Disc
Size 2–10 mm (ball) / customized (disc)
Material Porous ceramic with hydrogen-generating materials
Hydrogen Concentration 600–1500 ppb
pH Range 8.0–9.5
ORP Reduction Yes
Service Life 1–3 years
Temperature Resistance ≤100°C
Application Water purification systems
Hydrogen Generation Mechanism
Micro-Electrolysis Reaction
Mg + 2H₂O → Mg(OH)₂ + H₂↑
Hydrogen is generated through a controlled reaction between magnesium-based materials and water, producing dissolved hydrogen over time.
Hydrogen Dissolution
The microporous ceramic structure enhances hydrogen dissolution and retention, forming stable hydrogen-rich water.
Product Applications
Drinking water purification systems
Hydrogen water bottles and pitchers
Shower and bath filtration systems
Industrial circulating water systems
Aquaculture and hydroponics systems

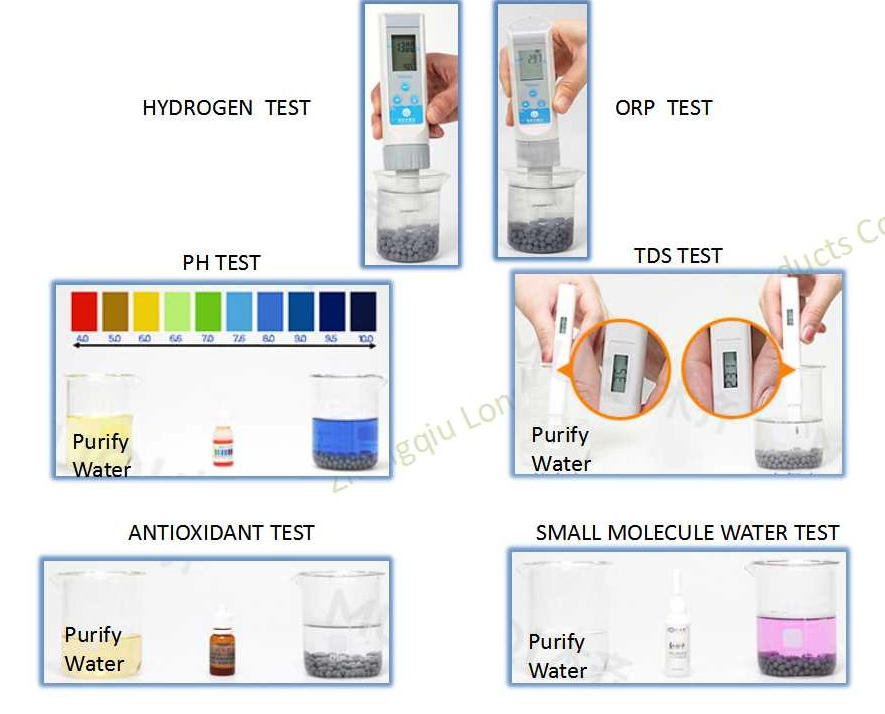

Product Test
Parameter Typical Result
Hydrogen Concentration 600–1500 ppb
pH Value 8.0–9.5
ORP (mV) Negative range achievable
Test Method Immersion test
Certifications
ISO9001 Quality Management System
ISO14001 Environmental Management System
SGS Testing Reports
FDA / LFGB compliant materials
FAQ
How does the product generate hydrogen
Hydrogen is generated through a micro-electrolysis reaction between active materials and water.
Is it safe for drinking water
Yes, the materials are stable and comply with international safety standards.
How long does it last
Typically 1–3 years depending on usage and water conditions.
Can it be used with other filter media
Yes, it is commonly combined with mineral balls, activated carbon, and antibacterial media.
